Electronic Filter Calculator Tools.

Our platform offers a comprehensive set of tools, centered on the bandpass filter calculator, essential for designing and analyzing electronic filtering circuits.

This multifunctional tool also includes evaluation functions for the following common filtering architectures: RC filter, RL filter, LC filter, and active low pass filter. The LC bandpass filter is one of the types of filters for which our calculator is optimized.

Boost your electronics skills with our calculators, eBooks, schematics, and AI tutor available now!

Join CircuitSkill now (9$)

The Bandpass Filter

The bandpass filter is a circuit designed to transmit signals whose frequencies fall within a specific passband, while heavily attenuating frequencies outside this range. It is defined by a low cutoff frequency and a high cutoff frequency . It is fundamental in communication systems for isolating the signal of interest.

The Elementary Passive Filters

Passive filters use only passive components (Resistors, Capacitors, Inductors) and are classified as follows:

RC Filter (Resistor-Capacitor Filter)

The RC filter is the simplest filter (first order). It is commonly used in low-pass or high-pass configurations. Its simplicity is an asset.

RL Filter (Resistor-Inductor Filter)

The RL filter uses a resistor (R) and an inductor (L). Less common than the RC filter, it is sometimes used in power applications.

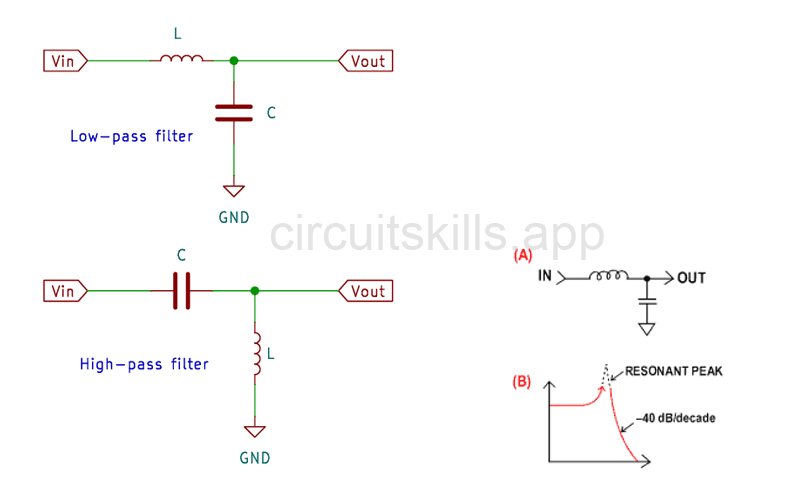

LC Filter (Inductor-Capacitor Filter)

The LC filter (or resonant circuit) uses an inductor (L) and a capacitor (C). It can form a higher-order LC bandpass filter. LC filters offer a steeper attenuation slope and are more power-efficient.

Active Filters

Active Low Pass Filter

An active low pass filter incorporates an operational amplifier (Op-Amp). The Op-Amp allows for the addition of voltage gain and improves stage isolation. This allows for the construction of higher-order filters with much steeper attenuation slopes without requiring inductors.
